    7000mm/s JPT IPG Laser Marking Machine For Engraving Silver

    Ask Lasest Price
    Brand Name : Keyi
    Model Number : KY-M-FB100
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 100 sets/month
    Delivery Time : 3-5 days
    • Product Details
    • Company Profile

    7000mm/s JPT IPG Laser Marking Machine For Engraving Silver

    Laser Marking Machine For Engraving And Cutting On Gold And Silver


    Introduction:

    The marking scope and comnputer can be chosen. It can use rotary to mark arround clomun or cylindrial objests, such as cup, bottle, tube and so on, rotary is a optional attachment also.


    Application:

    Electronic products, daily necessities, packaging, gift, craft, auto parts, digital products, communication goods, building materials, electrical appliances, kitchenware, jewelry, sanitary ware, medical apparatus, advertising making, photovoltaic product, commodity, hardware, and so on.


    Material:

    All material: stainless steel, copper, aluminum, gold, silver, titanium, alloy, etc.

    Some non-mental: ABS, PVC, acrylic (non-transparent), ceramic, EP, HDPE, PC, plastic alloy, ink and paint face, etc.


    Specification:

    Power60w
    Beam Quality<1.8
    Delivery Cable Length3m
    Maximum Pulse Energy0.97mJ
    Full Power Repetition Range31-2000 KHZ
    Pulse Repetition Rate Range12000 KHZ
    Pulse Duration2~250ns
    Longtime Average Power stability<5%
    Cooling MethodAir Cooling
    Supply DC Voltage (VDC)24V
    Current Consumption<10A
    Current Supply Consumption>10A
    Power Consumption@20<240W
    Central Emission Wavelength1064nm
    Emission Bandwidth@3dB<15nm
    PolarizationRandom
    Anti-Reflection ProtectionYes
    Output Beam Diameter6±0.5mm
    Output Power Tuning Range0100%
    Operation Temperature040
    Marking Parameters
    Marking Range45300(mm)@EFL=80-450(mm)
    Marking Speed0-7000(mm/s)
    Marking depth / Roman Type , Character Height 1mm0.01-0.5mm depenging on the material
    Marking Content/ Character TypesText/letters/numbers/symbols/graphics/design/logo, etc. Date/time/QR code / Barcode/ batch number/serial number, etc. real-time number coding
    Minimum character0.1(mm)
    Marking Line width0.01-0.2(mm) depending on the material
    Repetion Precision±0.003(mm)
    Other Information
    Life time100000 hours
    Control SoftwareEZCAD
    Laser Marking cardJCZ
    CertificationCE
    Warranty2 years

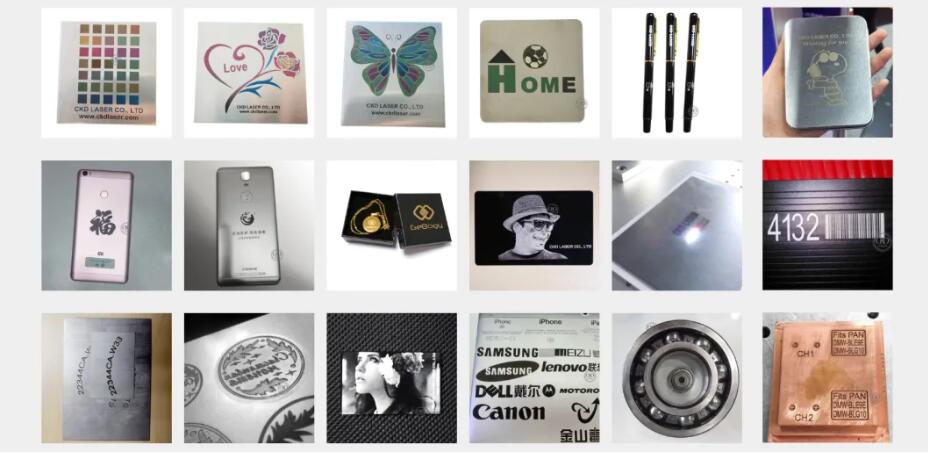

    Sample:
