    Plastic Mould Surface Dust Laser Cleaning Metal 200w 500w Machine Long Life

    Ask Lasest Price
    Brand Name : Keyi
    Model Number : KY-LCR
    Certification : CE
    Price : negotiable
    Supply Ability : 200 sets per month
    • Product Details
    • Company Profile

    Plastic Mould Surface Dust Laser Cleaning Metal 200w 500w Machine Long Life

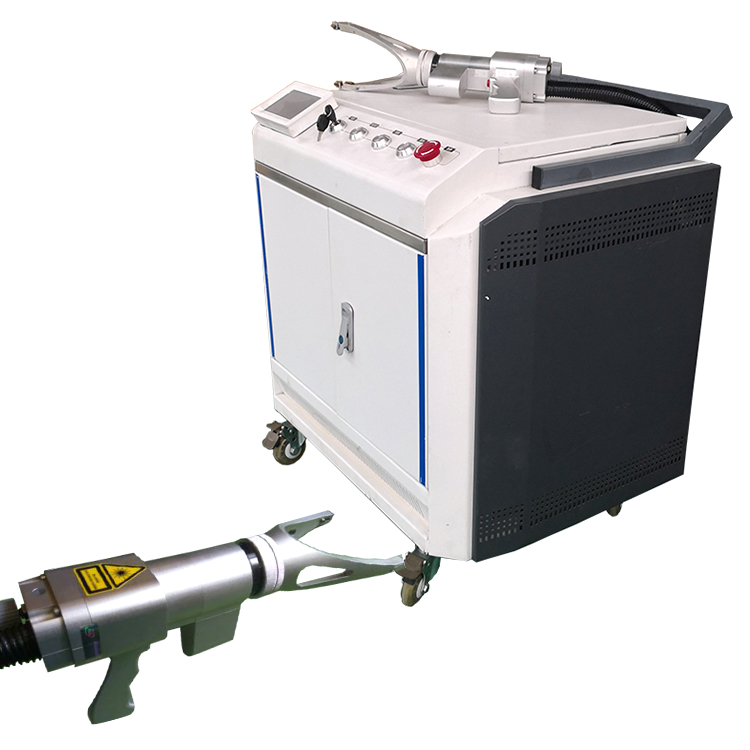

    Plastic mould surface dust 200w 500w laser cleaning machine


    Machine introduction

    Laser cleaning Machine is a new generation of industrial surface cleaning laser system. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.


    Contaminant


    The bonding force between the contaminant and the surface is mainly covalent bond, double dipole, capillary action, hydrogen bond, adsorption force and electrostatic force. Among them, capillary force, adsorption force and electrostatic force (Figure 1) are the most difficult to destroy. Note: capillary force from a thin liquid layer (such as atmospheric humidity) in the particle and the surface of the primary layer and the small gap between the cohesion; adsorption force is the main adhesion of micron pollutants


    Application industry:



    Specification:


    Model

    60

    100

    200

    500

    Laser source

    Fiber

    Fiber

    Fiber

    Fiber

    Laser Power

    60W

    100W

    200W

    500W

    Fiber cable L

    3 M

    3 M

    5 M

    10M

    Pulse Energy

    1.5 mJ

    1.5 mJ

    10 mJ

    50 mJ

    Wavelength

    1060nm

    1060nm

    1060nm

    1060nm

    Frequency

    50-500KHz

    50-200KHz

    20-50KHz

    10-50KHz

    Clean speed

    ≤5 M²/Hour

    ≤10 M²/Hour

    ≤15 M²/Hour

    ≤50 M²/Hour

    Scann speed

    0-7000mm/s

    0-7000mm/s

    0-7000mm/s

    0-7000mm/s

    Cooling

    Air cooling

    Air cooling

    Water cooling

    Water cooling

    Dimension

    450*350*500

    500*400*550

    900*600*1100

    1600*1100*1800

    Weight

    30Kg

    40Kg

    120Kg

    300Kg

    Beam width

    10-100mm

    10-100mm

    10-100mm

    10-100mm

    Optional

    Manual

    Manual

    Manual

    Manual

    Temperature

    5-40 ℃

    5-40 ℃

    5-40 ℃

    5-40 ℃

    Voltage

    Single Phase 220V, 50HZ

    Single Phase 220V, 50HZ

    Single Phase 220V, 50HZ

    Single Phase 220V, 50HZ
