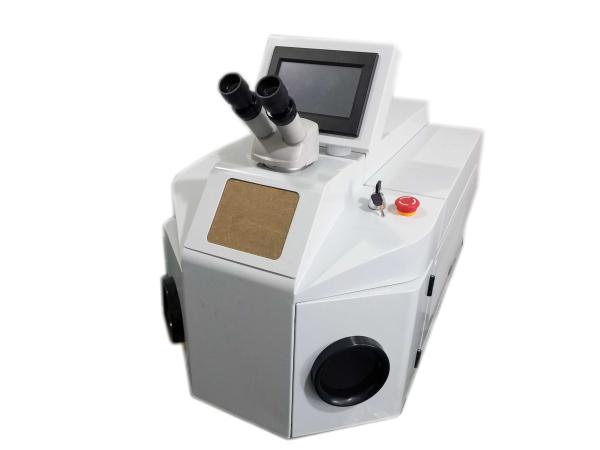

Soldering Jewelry Spot Welding Machine For Gold Silver Jewelry
Description:
Laser spot welding is an important way of laser materials
processing technology applications, spot welding process is hot
conduction type, laser radiation heating the surface, the surface
of the heat through the heat transfer based internal diffusion, by
controlling the laser pulse width, energy, peak power and
repetition frequency and other parameters, so that the work piece
to melt to form a specific pool. Because of its unique advantages,
it has been successfully applied to gold and silver jewelry
processing and micro, small parts welding.
Machine Features :
1). Energy, pulse width, frequency, spot size can be adjusted
within a wide range, in order to achieve a variety of welding
results. Parameter adjustment lever by a closed cavity, simple and
efficient.
2). The British imported ceramic condenser cavity, corrosion
resistance, high temperature, high photoelectric conversion
efficiency, the condenser chamber life (8--10 years), xenon lamp
life of more than 8 million times.
3). The world's most advanced automatic shading system, eliminating
the time to protect the eyes.
4). With 24 hours of continuous work capacity, machine performance
and stability, within 1,500 hours of maintenance-free.
5). User-friendly design, ergonomic, long working hours without
fatigue.
6). Speed, high efficiency, depth, small deformation, small
heat-affected zone, high quality welding, spot clean, efficient and
environmentally friendly.
Applications :
Widely used in aviation, aerospace, sporting goods, jewelry, golf
club heads, medical equipment, aluminum dentures, instruments,
electronics, machining, automotive and other industries, in
particular for the fill hole silver platinum titanium stainless
steel jewelry accessories point weld lines, precious stones and
claw feet by welding.
Specification:
| Item Name | Technical Parameter |
| Model Name | KY-W-DW |
| Laser type | YAG laser source |
| Laser wavelength | 1064nm |
| Frequency of laser | 1-20Hz |
| Laser Power | 200W |
| Max Single Pulse Engery | 100J |
| Pulse Width | ≤ 20ms |
| Power supply | 220V±5% / 50Hz or 110V/60Hz |
| Beam Diameter | 0.1-3.0mm |
| Observing System | microscope |
| Chamber Illumination | LED lamps |
| Parameters Memorization | 10 groups |
| Protection Alert | flow alert |
| Language Display | English |
| Shield Gas Supply | One line |
| Cooling System | Water cooling |
| Power Consumption | 6KW |
| Power Supply | 220V±10% /50Hz |
| Welding Chamber Dimensions | 300mm*450mm*150mm(L*W*H) |
| Machine Dimensions | 920mm*560mm*1220mm (L*W*H) |
| Running Environment | 5℃-30℃, 5%-75% humidity |
| Net Weight | 130kg(welder)+50kg(chiller) |
Welding Samples:
