    Laser Printing Machine On Metal Glass Cup A Small Plastic Bag 7000mm/s

    Ask Lasest Price
    Brand Name : Keyi
    Model Number : KY-M-UV
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3000 sets per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

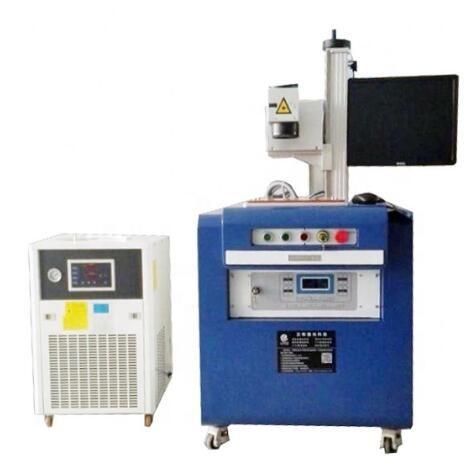

    Laser Printing Machine On Metal Glass Cup A Small Plastic Bag 7000mm/s

    3 W UV Laser Marking Printing Machine For Glass Cup And Plastic Bag Printing Machine Small


    Application:


    Main used for all kinds of glass , Charger shell of Samsung and Iphone , earphone, TFT , LCD , plasma screens , textiles , thin ceramic Silicon , IC Crystal, Sapphire , polymers, drug , cosmetic , polymer materials such as wire , bottles( boxes ) surface marking, and micro-holes


    Features:


    1 . Ultraviolet laser is the preferred product for customers with higher requirements for marking effect because of its very small focusing spot and small processing heat-affected zone


    2 . Ultraviolet laser has a wider range of materials suitable for processing besides copper


    3 . Not only the beam quality is good, but also the focus spot is smaller, which can realize hyperfine marking


    4 . The application scope is wider; the heat-affected area is very small, and there will be no heat effect and no material burning problem


    5 . Fast marking speed, high efficiency, stable performance, small size, low power consumption and other advantages


    Technical Parameters:


    Power3W / 5 W8 W
    Wavelength(nm)355
    Pulse repetition rate(kHz)20-10050-100
    Pulse Width(ns)<20ns O30KHZ<25ns@10KHZ
    Average Power(W)2.0-3.0@30kHz4.0-5.0@40kHz7.0-8.0@50kHz
    Average Power Stability±2%over8 hours
    Pulse-to- Pulse instability< 3% rms
    Spatial ModeTEMOO(M2 <1.3)
    Beam Divergence<2 mrad(Full Angle)
    1/e2 Beam Diameter0.6±0.1mm
    Beam Roundness>90%
    Pointing stability<50urad
    Polarization DirectionHorizontal
    Polarization Ratio100:01:00
    Coolingair-coolingwater-cooling
    Ambient Temperature(℃)15-30
    Storage Temperature(℃)-60
    Relative humidity10%-80%(non-condensing)
    Warm-up Time(mins)<10
    Operating Voltage(V)90-260

    Sample:
