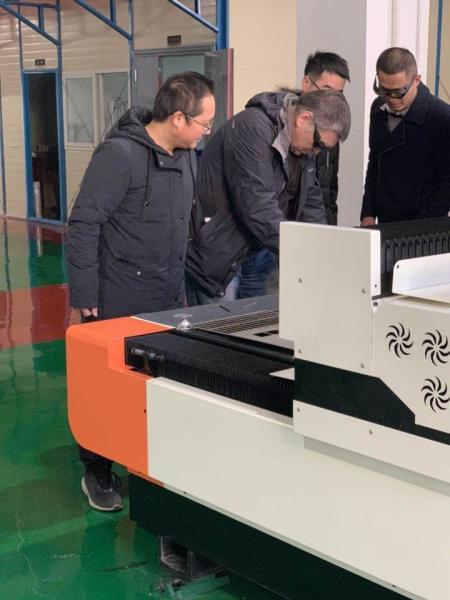

Stainless Steel Laser Cutting Fiber Laser Cutting Machine Working
Table 3000mm×1500mm
Introduction:
1. powerful cutting function, which can simultaneously satisfy
customers' requirements for flat and pipe cutting
2. adopt pneumatic chuck and push cutting mode, which has high
centering accuracy and machining accuracy.
3. the machine tool adopts the overall profile welding structure
after many CAE analysis and verification. After annealing, the
finishing process eliminates internal stress, and better solves the
stress generated by welding and machining, thus improving the
rigidity and stability of the equipment.
4. Longmen adopts high strength aluminum alloy casting structure,
which has the advantages of light weight and good dynamic response.
5. the X/Y axis adopts precision helical gear transmission
mechanism, which effectively ensures the accuracy and speed in the
cutting process.
6. imported laser has better stability and longer service life.
7. excellent machining system, friendly interface, easy operation,
and real-time feedback on machining status, ensuring the orderly
processing.
Specifications:
| Processing area | 3000*1500mm |
| Pipe Clamping range | Round pipe: 25-⌀150mm
Square pipe: □25-□100mm |
| Max Pipe Length | ≤6000mm |
X,Y axis location accuracy | ±0.05mm/m |
X,Y axis repeated location accuracy | ±0.03mm |
| Max running speed | 100m/min |
| Max running acceleration | 1.0G |
| Max load pipe | 60kg(≤10kg/m) |
| Power supply | 380V/50HZ |
Configruations:
| Item No. | Item Name. | Brand | Qty |
| 1 | Control System | Customized | 1 SET |
| 2 | Fiber Chiller | Customized | 1 SET |
| 3 | Fiber Cutting Head | Customized | 1 Piece |
| 4 | Servo Motor& Driver | Customized | 4 Sets |
| 5 | Precision hecical Gear | Customized | 3 SETS |
| 6 | Precision Reducer | Customized | 3 SETS |
| 7 | Precision Linear Rail | Customized | 3 SETS |
| 8 | Precision Ball Screw (Z axis) | Customized | 1 Set |
| 9 | Gas Path System | Customized | 1 Set |
| 10 | Electrical System | Customized | 1 Set |
Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland,
Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia,
Japan, Korea, Thailand, Indonesia, Uruguay and many other
countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick
delivery.
