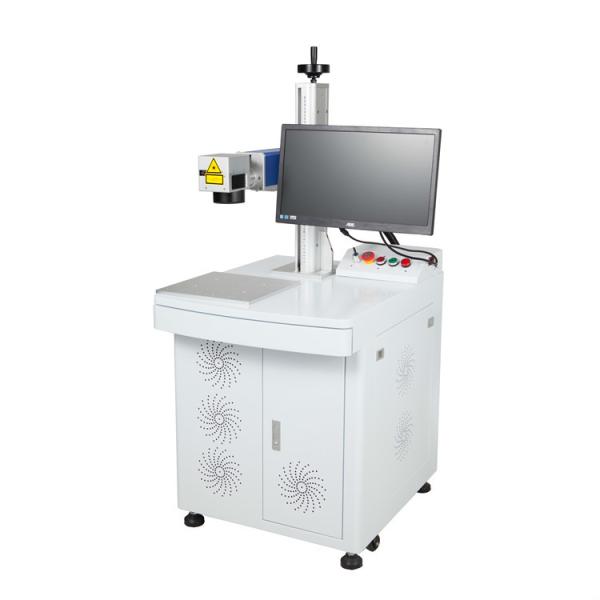

Raycus Resource Fiber Laser Marking Machine / 30W Fiber Laser Marking System

    Buy cheap Raycus Resource Fiber Laser Marking Machine / 30W Fiber Laser Marking System from wholesalers

    Buy cheap Raycus Resource Fiber Laser Marking Machine / 30W Fiber Laser Marking System from wholesalers
    • Buy cheap Raycus Resource Fiber Laser Marking Machine / 30W Fiber Laser Marking System from wholesalers

    Raycus Resource Fiber Laser Marking Machine / 30W Fiber Laser Marking System

    Ask Lasest Price
    Brand Name : Keyi
    Model Number : KY-M-FB
    Certification : CE
    Price : Negptiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 3000 sets per month
    Delivery Time : 5-7 working days
    • Product Details
    • Company Profile

    Raycus Resource Fiber Laser Marking Machine / 30W Fiber Laser Marking System

    30W Fiber Laser Marking Machine With PC For Rubber , Extingushier


    Features :


    1 . Adopts the USA RF laser generator,high speed scanning vibrating lens and extending focusing system,high precision,high speed


    2 . Red light positioning system,ensure accurate positioning,avoid waste


    3 . Professional marking software owns strong graphics drawing and editing funcion,enable direct marking of color graphic or marking after color convert from RGB to grey scale


    4 . It is popular with it's high precision ,high speed ,carving depth of random control. It can be applied to a variety of non-metal engraving . No consumables, Marking clear, not easy to wear and tear


    Applicable Material:


    Laser marking machine can work with most metal marking applications, such as Gold, Silver, Stainless Steel, Brass, Aluminum, Steel, Iron etc, and can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.


    Technical Parameters:


    Max Marking Speed300characters/s, height of character 1mm
    Graphic Format SupportedPLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF
    Power Stability(8h)<±1%RPM
    Pulse Repeat Frequency20-60KHZ
    Whole Machine Power<800W
    Mini Line Width50um
    Mini Character1mm
    Laser Wavelength1064mm
    Working area110*110mm(optional150*150mm/200*200mm/300*300mm)
    Cooling WayAir cooling
    Working Voltage110v/220V±10%/50HZ
    Working Temperature5°C-35°C
    Weight40KG
    Package Dimension42*32*80cm
    PackageStrong veneer case

    Sample Pictures:
