20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe

Ask Lasest Price
Brand Name :	keyi
Model Number :	Ky-M-FB30w
Certification :	CE
Price :	negotiate
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	2000
Delivery Time :	5-7 working days

Add to Cart

Product Details
Company Profile

20W Flying Optical CNC Laser Engraving Machine for Metal Steel Aluminum HDPE Pipe

20W Flying Optical Fiber Laser Marking Machinefor Metal/Steel /Aluminum/HDPE Pipe

Online Flying plastic bottle laser marking machine Main Features

1) Flying Marking, also called online laser marking,Advanced digital high-speed scanning galvanometer,Embedded laser operating software system.

2) Flying Laser Marking Printing Machine 30W is laser marking printer especially matched for the automatic production line for flying printing & marking for the date codes or barcodes.

3) Compared to the traditional inkjet printer, Flying Laser marking printer has zero consumption of any materials, no need ink, no pollution, no noise, energy saving and environmental protective.

The Flying Laser Marking Printer can be equipped with different kinds of laser sources (fiber, co2, or UV) and printer system.

4) It can be widely used in food and beverage, pharmaceutical, tobacco, leather industry.

5) This is the 30W fiber source flyinng laser marking printer, it could be used for metal and nonmetal flying marking combined with various kinds of the production line. There is another co2 laser source online laser marking printer available especially for nonmetal materials' online marking.

SPECIFICATIONS
Model	Keyi-M-FB30w
Laser Type	Fbier Laser
Laser Power	10W/20W/30W/50W
Laser Source brand	Raycus Chinese Best Fiber Laser Manufacture
Marking Speed	7000 mm/s
Marking Field	70X70 - 300X300 mm
Min Line Wide	0.001 mm
Marking Depth	0.1mm depends on material
Wavelength	1064 nm
Software	EzCAD 2.14.7 or later
Supported Format	PLT, DXF, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF
Cooling	Air cooling
Unit Power	≤500W
Lifespan	≥45000 hours
Warranty	2 Years

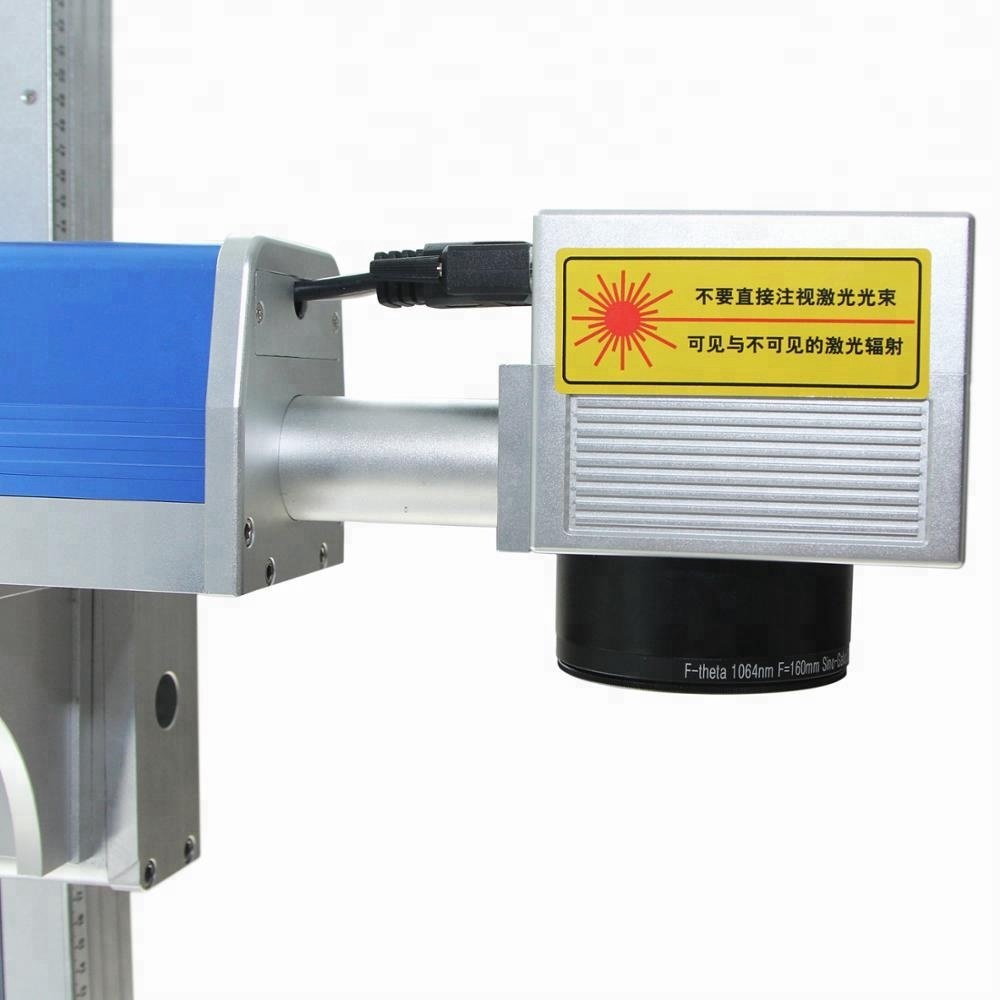

Product show:

Fiber Laser Source
Brand	Raycus
Wave length	1064 nm
Max output power	>50 W
Power range	10 - 100 %
Output power stability	< 3 %
Repetition frequency range	50 - 100 kHz
Pulse width	90 - 150 ns
Max single pulse energy	1 mJ
Beam quality	< 1.8 M2
Output beam diameter	7±1 mm
Delivery cable length	2 m
Optical fiber protection	φ6
Power supply	DC 24 V
Power consumption	340 W
Cooling	Forced Air
Operating Temperature	0 - 40 ℃
Dimensions	396X360X123 mm

Sample show:
