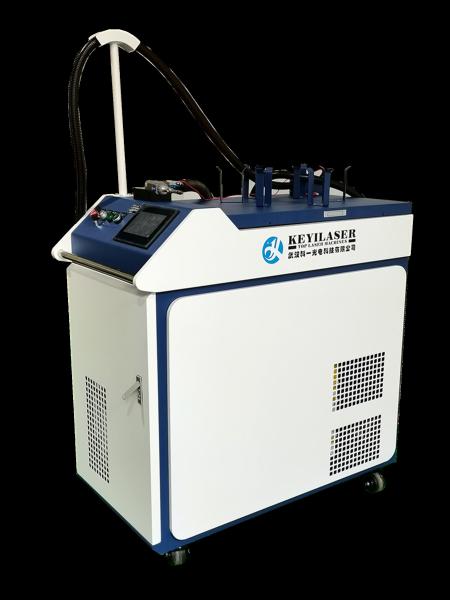

CW modulated 1KW Handheld Laser Welding Machine

    Buy cheap CW modulated 1KW Handheld Laser Welding Machine from wholesalers

    Buy cheap CW modulated 1KW Handheld Laser Welding Machine from wholesalers
    • Buy cheap CW modulated 1KW Handheld Laser Welding Machine from wholesalers

    CW modulated 1KW Handheld Laser Welding Machine

    Ask Lasest Price
    Brand Name : Keyi
    Model Number : KY-W-HW1000Wb
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 100 sets/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    CW modulated 1KW Handheld Laser Welding Machine

    Wholesale 1000W Fiber Handheld Laser Welding Machine Price for Sale


    Introduction:

    Fiber Laser Welding is a welding technology used to join several metal components with fiber laser. Fiber laser produces a beam of high-intensity that is concentrated into one spot. This concentrated heat source enables fine, deep welding and high welding speed.


    Application:

    Laser Welding Machine is widely used in mobile phone battery shell, houshold appliances,electronic components, mobile communication, hardware products, automotible accessories, glasses, kitcen industry , advertisement, stainless aluminum windows and doors, medical equipment, thermal cups and etc. other industries.

    Specification:

    ModelKY-W-HW1000Wb
    Power1000w
    Operational ModeCW/modulated
    Central wavelength1080±5nm
    Size for welding wire0.2-1.2mm
    Controling wayCircuit control board + laser welding software + handheld welding head
    Welding waysSpot welding/continuous welding
    Interface of fiber-opticalQBH
    Module life>100000hrs
    Cooling styleWater cooling
    Laser welding headabout 1.36kg
    Red LaserYES
    Polarization StateRandom
    Power Consumption(w)4000
    Laser welding headWobble welding head
    Wobble modeCircle, liner, eight, infinity
    Welding thickness range<3mm

    ​​​​​​​


    Laser welding vs Argon arc welding

    Comparison itemLaser weldingArgon arc welding
    Welding methodSpot welding or continuousSpot welding
    Applicable materialsStainless steel, carbon steel, galvanized sheet,aluminum, etc.Stainless steel, carbon steel, galvanized sheet
    Thickness requirements0.5—4mm1—12mm
    Workpiece deformation/undercutSmallBig
    Welding speed0—8m/min0—1m/min
    Subsequent processingLight or no sandingNeed polishing
    Operation difficultySimpleComplex
    Safety and environmental protectionRelatively safe and environmentally friendlyNot safe and environmentally friendly
    Labor costsGeneral workers (can operate after simple training)Professional welder
    Wearing partsLens, nozzleArgon
    SuppliesArgon/Nitrogen

    Argon


    Sample:
