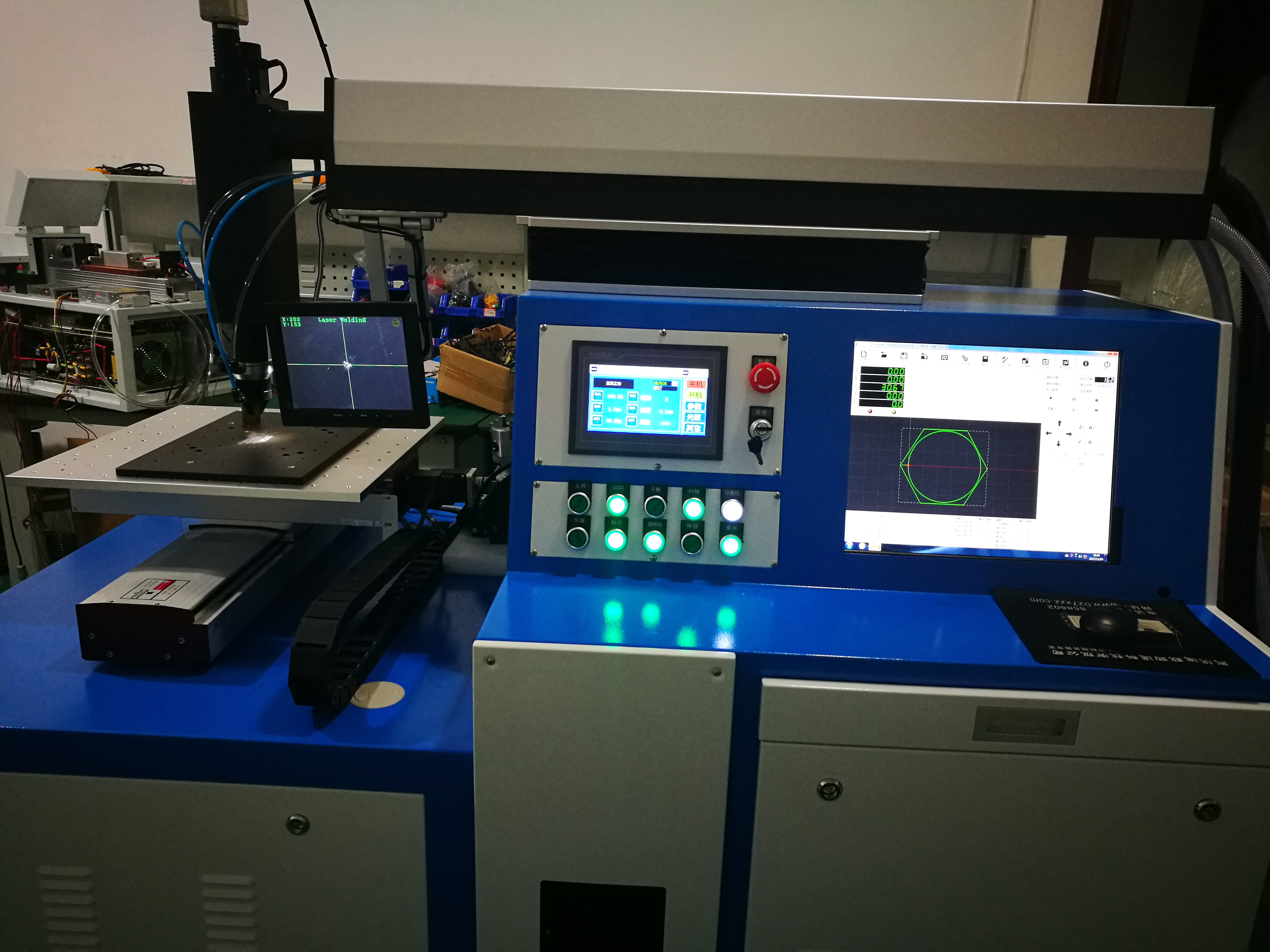

Hot Sale 300W/400w Fiber Transmission Laser Welding Machine for
Metal
Introduction
Adopting the Pulsed xenon lamp-pumped Nd:YAG, 1064 nm infrared
laser of the laser crystal output and arbitrary waveform real-time
control of laser power feedback technology,the Laser welder system
of our company ensures that the laser power waveform is in good
working condition with good stability and reproducibility. Products
of laser power ranging from 25W to 500W, covering small and large
power system, basically meet the demand for precision welder of
various industries.
Mainly for the welder of thin-walled materials and precision parts,
our products can realize spot welder, butt welder, stitch welder
and seal welder. With features such as depth width ratio, small
weld width, small heat-affected zone , small deformation, high
welder speed, smooth weld, beautiful appearance, high welder
quality, no pores, size-small focal spot, as well as precise
positioning, the WF series optical fiber laser welder machine can
be accurately controlled and easily realize automatic optical fiber
transmission .
Characteristic
1. A laser beam is delivered by the fiber, and it is more flexible.
It can also be combined with robotics to fully customize
workpieces. And automation is available.
2. 6 fiber delivery can be optional, and energy sharing or time
sharing is available.
3. The CCD coaxial monitor system can display and monitor every
working station in real time.
4. It can set a maximum of 64 sections of waveshape. And all the
waveshapes can be called from the outside. Waveshape switching
while welding. It can be suitable for various complicated welding
demands. The laser output power feedback or current feedback can be
an option..
Applications
It is widely used in aerospace, sports goods, jewelry, medical,
instrumentation, electronics, machinery and molding, and auto
industry. Especially in repairing jewelry, watch hairsprings,
dentals, kinescopes, etc.
Parameter| Model | KY-FW300 | KY-FW400 |
| Wavelength | 1064nm |
| Pulse width | 0.5ms-20ms |
| Single-pulse energy | 70J | 100J |
| Max. output power | 300W | 400W |
| Spot size | 0.2mm~1.5mm |
| Welding depth | ≤1mm | ≤1.5mm |
| Frequency | 1Hz-150Hz |
| Power consumption | ≤12KW | ≤16KW |
| Input power | 380V, tri-phase, 50Hz, 40A |
Packaging & Shipping
1. Keyi Optic & Electric products packaging are in line with
international air and sea transport packaging standards;
2. With sturdy wooden or iron box packing for long-distance
transport, protection against water, rust, shock and rough handling
for each part of the overall lifting equipment according to
standard packaging;
3. Every package has a detailed packing list;
4. We will deliver within 7–10 day after payment.
Service Commitment
1. Keyi Optic & Electric provide two-year free warranty and
life-long maintenance. We provide spare parts and service free
during warranty time. After the warranty period, we shall charge
only when maintenance and continue to provide broad and favorable
technical support and spare parts supply.
2. Keyi Optic & Electric will upgrade software free for our
products.
3. Keyi Optic & Electric received your repair call; our after-sales
engineers will give a clear answer within one hour and arrive at
the scene within 24 hours to ensure that users do not delay
production.
4. Feel free to contact me for details 24 hoursa day online.
