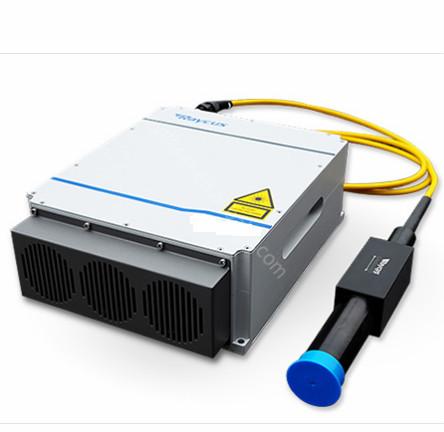

    10-10W Q-switched Pulsed Fiber Lasers Resource Marking Deep Carving Cleaning Precision Welding :

    Ask Lasest Price
    Brand Name : Raycus
    Model Number : KY-M-LS
    Certification : CE
    Price : Negotiable
    Supply Ability : 3000 sets per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    10-10W Q-switched Pulsed Fiber Lasers Resource Marking Deep Carving Cleaning Precision Welding :

    10-10W Q-switched Pulsed Fiber Lasers Resource Marking Deep Carving Cleaning Precision Welding


    Characteristic:


    1) High stable laser output


    2) High single-pulse energy


    3) High marking efficiency


    4) Short pulse setup time


    5) High reliability


    6) Maintenance-free operation


    Application:


    1) Material Processing


    2) Marking/Deep Carving/Cleaning/Precision Welding


    3) Micro-Processing


    4) Metal Film Cutting&piercing


    5) Metal Drawing


    6) Texturing


    7) Resistance Adjustment


    ModelKY-LS10QKY-LS20QKY-LS30QKY-LS50QKY-LS100Q
    Optical Properties
    Average Output Power(W)10203050100
    Central Wavelength (nm)1064
    Repetition Frequency Range20-6030-6050-10020-200
    Output Power Stability<3%<5%
    Output Characteristics
    Output Beam Diameter(mm)7±16.5±1
    M2<1.5<1.8
    Polarization StateRandom
    Pulse Width(ns)80-10090-13090-15050-130
    Max Single Pulse Energy(m J)0.51
    Delivery Cable Length(m)2(customized for optional)
    Electrical Characteristics
    Power Supply (VDC)24
    Power Range(%)10-100
    Power Consumption120170240340450
    Other Characteristics
    Dimensions(mm)(width *height*depth)240*340*120360*390*123
    CoolingAir-cooled
    Operating Temperature(℃)0-40

    Package:
